Pad 42

Vertical Stool Launch

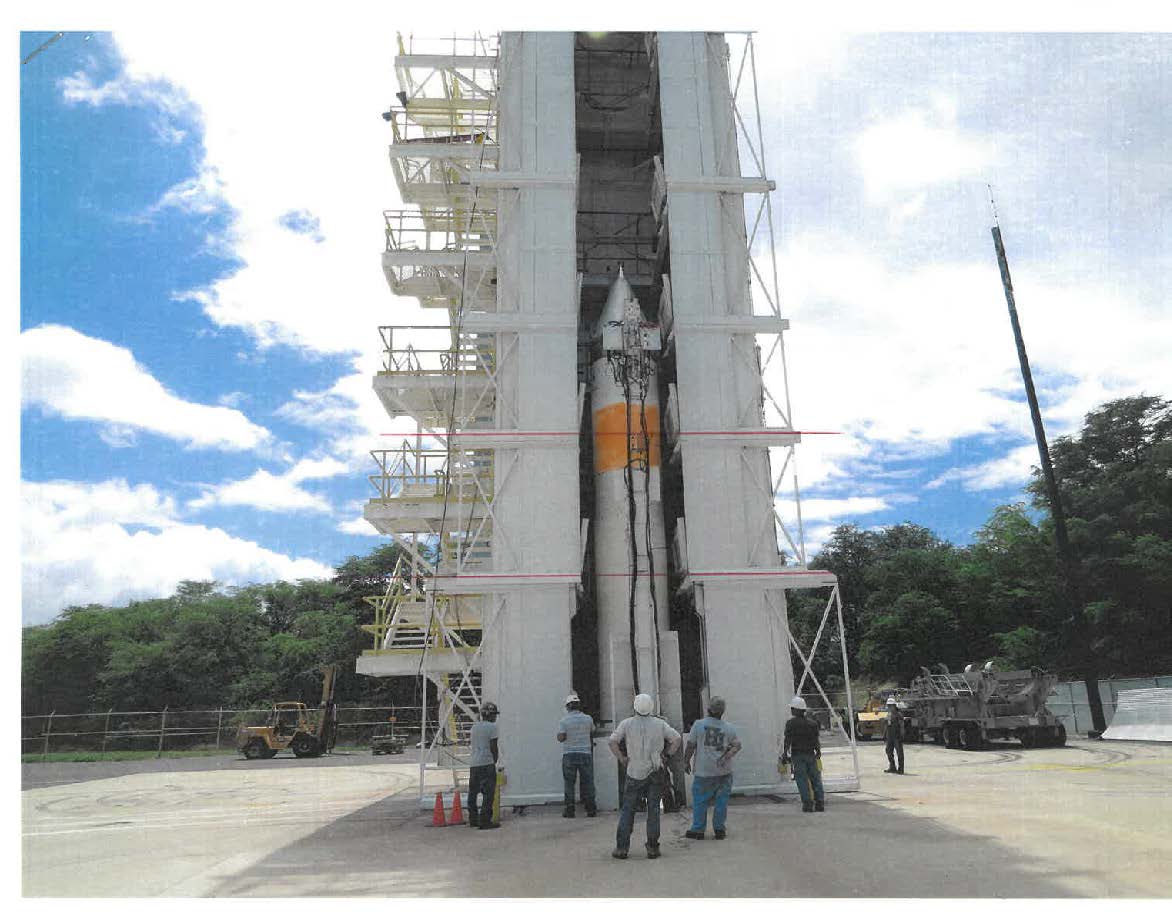

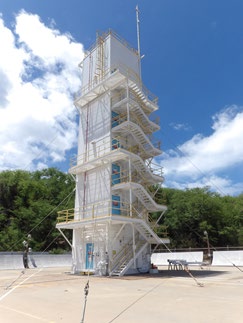

Image of stool1.jpeg
Image of stool2-1024x806.jpeg

The Pad 42 Vertical Stool Launcher is designed to provide advanced capabilities for launching vehicles with comprehensive support systems. Below are the key features and functionalities of the vertical launch pad and associated equipment:

Launch Pad Features

  • Vertical Stool Launch Pad
    Equipped with a Missile Service Tower (MST) and an Auxiliary Equipment Building (AEB) to support launch operations.
  • Configurable Support
    • Configurable to support different vehicle launch stands and vehicle diameter.
    • Capable of supporting launcher erectors for versatile launch options.
  • Lightning Protection System
    Integrated lightning protection system to ensure safety during adverse weather conditions.
  • Visual Surveillance
    Continuous visual surveillance of the pad area for enhanced security and safety monitoring.
  • Ordnance Grounding Grid
    Equipped with an ordnance grounding grid for safety compliance.

Missile Service Tower (MST)

  • Climate Controlled
    The MST is climate-controlled to maintain optimal working conditions.
  • Height and Levels
    • Height: 80 feet.
    • Six working levels for operational flexibility.
  • Configurable Dimensions
    Configurable to accommodate different vehicle diameters and heights.
  • GPS Re-rad Capability
    Equipped with GPS re-radiation capability for enhanced navigation support.
  • Camera Coverage
    Multiple Pad/tilt/zoom camera coverage on each level for comprehensive monitoring.
  • Communication
    Integrated communication panel for effective coordination on each level.
  • 2-ton Monorail Crane
    Features a 2-ton monorail crane for efficient material handling.
  • Vortex Cooler System
    Equipped with a vortex cooler system for temperature regulation.

Auxiliary Equipment Building (AEB)

  • Secure Space
  • Climate Controlled
    The AEB is climate-controlled to ensure optimal working conditions and equipment cooling.
  • Visual Surveillance
    Continuous visual surveillance of the interior for security.
  • Communication
    Integrated communication panel for seamless communication.
  • Ordnance Grounding Grid
    Ensures safety and compliance during operations.

Explosive Load Limit

  • Explosive Load Capacity
    The facility has an explosive load limit of 55,000 lbs. (Class 1.1), ensuring adherence to safety regulations.
