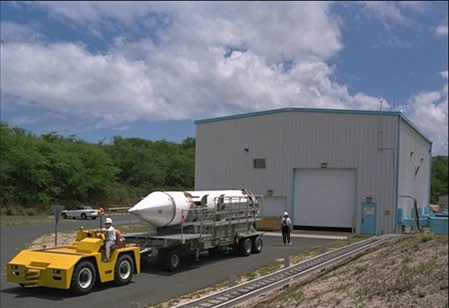

The Missile Assembly Building (MAB) is designed to provide comprehensive build-up and checkout space for customer payload and booster systems. Below are the key features and functionalities of the MAB:
Facility Specifications
- Build-Up and Checkout Space
Dedicated space for the assembly and testing of customer payload and booster systems. - Electronics Lab
- Entrance Office Area
- High Bay Area
- Dimensions: 35 ft x 70 ft, providing ample space for large-scale operations.
- Secure facility.
- Climate Control
The facility is climate-controlled to ensure optimal working conditions for sensitive operations. - Ordnance Grounding Grid
Equipped with an ordnance grounding grid for safety and compliance during assembly processes. - Visual Surveillance
Continuous visual surveillance of the High Bay area to enhance security and monitoring.
Communication and Access
- Communication
Integrated communication panel for effective communication during operations. - Access Doors
Two access doors, each measuring 15 ft x 15 ft, facilitating easy entry and exit.
Crane and Lab Facilities
- Bridge Cranes
Two bridge cranes with capacities of 10 tons and 20 tons, featuring an 18-inch hook height for efficient material handling. - Electronics Labs
Two electronics labs with dimensions of 15 ft x 30 ft and 15 ft x 15 ft, equipped for specialized electronic work. - Entrance Office Area
Dedicated entrance office area for administrative functions and visitor management.
Explosive Load Limit
- Explosive Load Capacity
The facility has an explosive load limit of 35,000 lbs. (Class 1.1), ensuring compliance with safety regulations.
